rohs compliant Echo 40F Embedded Fanless Mini PC with 2 LAN

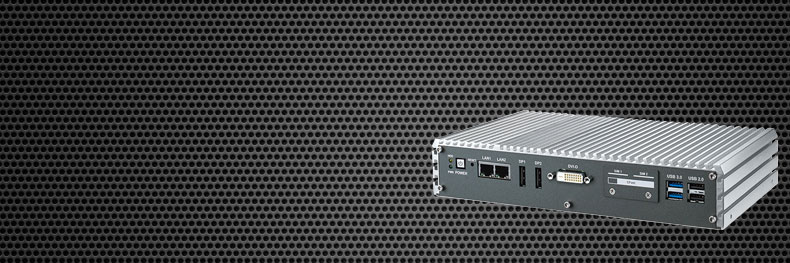

Echo 40F Embedded Fanless Mini PC with 2 LAN

Features | Specifications | Picture Gallery | Power Consumption | Buy Now



Echo PC SeriesFanless Mini PC Echo 40F Embedded Fanless Mini PC with 2 LAN

Echo 40F Embedded Fanless Mini PC with 2 LAN

With extreme features integration, outstanding system performance, versatile I/O connections, wide range power input, smart management functions and rugged reliability, Echo 40F Embedded Fanless Mini PC with 2 LAN Slim Fanless Embedded System is your great choice for Machine Vision, Intelligent Manufacturing, Intelligent Transportation System (ITS), In-Vehicle Information System, Logistic Solution, Vehicle Computing and Surveillance applications.
Echo 40F Embedded Fanless Mini PC with 2 LAN
  Echo 40F Fanless PC
5th Generation Intel® SoC (Broadwell-U)

2 x Gigabit LAN
2 x Display Ports

Small Form Factor Fanless embedded
Low Power Consumption Fanless embedded PC
Echo 40F Embedded Fanless Mini PC with 2 LAN


Mica 87 4th Gen Mini PC

Features List

  • 5th Generation Intel® Core™ i7/ i5/ i3 U-Series Processor (Broadwell-U) Embedded
  • Fanless Mini PC embedded
  • 2 SIM Card sockets (2 External)
  • 2 x Gb LAN
  • 2 x DisplayPort
  • 2 x USB 3.0
  • 4 x COM Ports
  • Configurable Ignition Power Control for In-Vehicle user
    Power off delay up to 24 hours (See page 39 of User Manual)
  • 6V to 36V DC-in
  • EN50155 compliant
  • Intel® Firmware Raid
Related Products

Echo 87F Fanless Mini PC
Built-in 4 x COM
Built-in 2 x Gb LAN
Built-in 4 x USB 3.0
Built-in 2 x USB2.0
Mobile Broadwell-H (5th Gen. i7)

Read More
i7 wide extended temperature mini pc computer

Echo 77FE
(Embedded Fanless Mini PC)
PCI-E x 16

Built-in 2 x Gb LAN
2 x SATA Hard Drives
Mobile IvyBridge (3rd Gen. i7)

Read More
i7 wide extended voltage mini pc computer

Echo 77-PoE+ ( Fanless Mini PC embedded)
Wide Voltage
(6-36V)

Built-in 2 x Gb LAN
2 x SATA Hard Drives
Mobile IvyBridge (3rd Gen. i7)

Read More
i7 wide extended temperature mini pc computer

Mica Ultra Thin Embedded Fanless Mini PC
Built-in 2 x Gb LAN
Built-in 4 x USB 3.0

Desktop Haswell (4th Gen. i7 CPU)

Read More
i7 small mini pc computer

SP675 Series Small Embedded Fanless Mini PC
PCI, PCI-e x1

Add-ons 4 x Gb LAN
Add-ons 2 x Gb LAN
Add-ons 4 x USB 2.0
Built-in 4 x USB 3.0
1 x SATA Hard Drives
Mobile Ivy Bridge (3rd Gen. i7)

Read More

Numi 210F Embedded Mini PC ( Fanless Mini PC)
Numi 210F BayTrail 2xLAN / 4xCOM Ports Low Power Mini PC
Built-in 2 x Gb LAN
1 x SATA Hard Drives
Intel Atom BayTrail I-E3845

Read More
3 x VGA 3 x COM Ports Mini PC

Latte Q87 embedded
Small Computer

2 x Gb LAN
Budget i7 LGA1150 (Haswell) Solution.

Read More

Digital Engine DE3250 (Fanless Mini embedded PC)
Digital Engine DE3250 2x Gigabit Ethernet / 2x HDMI Fanless Mini PC
Ultra Small Computer
Built-in 1 x COM
Built-in 2 x Gb LAN
Built-in 4 x USB2.0
Built-in 2 x Hdmi
Intel N2930 CPU

Read More
i7 fanless mini pc computer with PCI Express Slot

Twister Series (Fanless Mini embedded PC)
(PCI-e x1 Slot)
(PCI slot)

Built-in 6 x COM
Built-in 2 x Gb LAN
Built-in 4 x USB3.0
Mobile IvyBridge (3rd Gen. i7)

Read More
Digital Engine DE7200 Hashwell Mini PC ultraHD 4K Resolution

Digital Engine
DE7200 embedded
Small Computer

2 x Hdmi, 1 x DP
1 x COM Ports
1 x SATA Hard Drives

(Haswell Mini PC) Solution.

Read More

Power Consumption in Watts
 16   25   26
idleIdle normalNormal fullPeak / Full

spacer
Echo 40F
To Customize a Complete System.  Silver / Gray
 RoHS¹ Compliant
¹If you are purchasing for or exporting this system to European Countries, your system must be RoHS compliant. Click here for more RoHS information.
spacer

Pictures Gallery





Echo 40F Embedded Fanless Mini PC with 2 LAN
Specifications

System
Processor 5th Generation Intel® Core™ i7/ i5/ i3 Processor (Broadwell-U)
BIOS AMI
SIO IT8786E
Memory 2 DDR3L 1600MHz SO-DIMM, up to 32GB
I/O Interface
Serial
- 4 COM RS-232/ 422/ 485
USB
- 4 USB 3.0 (External)
- 4 USB 2.0 (3 External, 1 Internal by JST Connector)
GPIO 16 DIO : 8 DI, 8 DO (See Manual Page 70)
LED Power, HDD
SIM Card 2 SIM Card Socket (External)
(Additional Mini PCIe Modem required)
Expansion
Mini PCIe
2 Mini PCIe Socket :
- 1 Full-size for PCIe/ USB/ External SIM Card
- 1 Full-size for PCIe/ USB/ External SIM Card/ mSATA
Graphics
Graphics Processor - Intel® HD Graphics 6000
Interface
- DVI-D : Up to 1920 x 1080 @ 60Hz
- DisplayPort 1 : Up to 3840 x 2160 @ 60Hz
- DisplayPort 2 : Up to 3840 x 2160 @ 60Hz
Storage
SATA
2 SATA III (6Gbps)
mSATA 1 SATA III (Mini PCIe Type, 3Gbps) Shared with Mini PCIe device
Storage Device
- 1 CFast Socket, Push-in/ Push-out Ejector
- 2 2.5" SSD/ HDD Bracket (Internal)
Audio
Audio Codec Realtek® ALC892, 5.1 Channel HD Audio
Audio Interface 1 Line-out, 1 Mic-in
Ethernet 2 LAN
LAN 1 Intel® I218 Gigabit LAN supports iAMT
LAN 2 Intel® I210 Gigabit LAN
Power
Power Input Wide Voltage 6V to 36V, DC-in
Power Interface
- 3-pin Terminal Block : V+, V-, Frame Ground
- Mini-DIN 4-pin
Ignition Control 16 Mode(Internal) (See Manual Page 39 for detail)
Remote Switch 3-pin Terminal Block : On, Off, IGN (See Manual Page 19 for detail)
Surge Protection Up to 80V/1ms Transient Power
Others
Trusted Platform Module (TPM) Optional Infineon SLB9665 supports TPM 2.0, LPC Interface
Watchdog Timer Reset : 1 to 255 sec./min. per step
Smart Management Wake on LAN, PXE supported
HW Monitor Monitoring temperature, voltages. Auto throttling control when CPU overheats.
Mechanical
Dimensions (W x L x H) 257mm x 141mm x 48mm (10.1” x 5.6” x 1.9”)
Weight 2.1 kg (4.6 lb)
Mounting
- L shape Mounting bracket (Included)
- VESA mounting (Optional)
- 2U Rackmount (Optional)
- DIN Rail Mount 35mm Wide (Optional) Drawing Download
Operating System
Windows 10 Supported
Windows 8 Supported
Windows 7 Supported
User Manual User Manual Download
Drivers Windows Drivers
Linux Supported
Environment
Operating Temperature -25°C to 70°C  (-13°F to 158°F) With Special Wide Temperature memory and SSD

0 to 40°C with Hard Disk
0 to 60°C with SSD
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Humidity 10% to 95% Humidity, non-condensing
Relative Humidity 95% at 70°C
Vibration
- IEC 60068-2-64
- SSD : 5Grms, 5Hz to 500Hz, 3 Axis
Shock
- IEC 60068-2-27
- SSD : 50G @ wallmount, Half-sine, 11ms
EMC CE, FCC, EN 50155, EN 50121-3-2
